THERMOPLASTIC HOSE

We offer thermoplastic hose for mobile & industrial equipment

Thermoplastic hose is widely used in medium-to-high pressure hydraulic applications. These include:



  • Power & Telephone Mobile Equipment (Cherry Pickers)
  • Lubrication Lines
  • Blowout Preventer Control Lines
  • Hydraulic Lifts
  • Farm & Construction Machinery

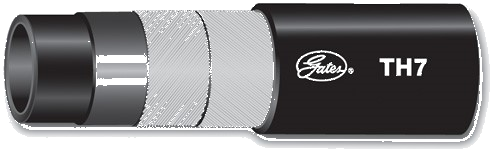

THERMOPLASTIC FIBRE BRAID

Read More

Tube: 100% seamless Nylon – Type Z that easily handles a broad range of hydraulic fluids, including phosphate esters and water glycol.

Reinforcement: Braided synthetic fiber (-2, -8, -12 and -16). Spiraled synthetic fiber (-3, -4, -5 and -6).

Cover: Black polyurethane that resists hydraulic fluids, high temperatures, aging and weathering. Black TH7 is perforated for use in general hydraulic and pneumatic service.

Temperature Range: -65°F to +200°F (-54°C to +93°C) continuous service for petroleum and synthetic oils. Maximum of +158°F (+70°C) for water, water/oil emulsions and water glycol.

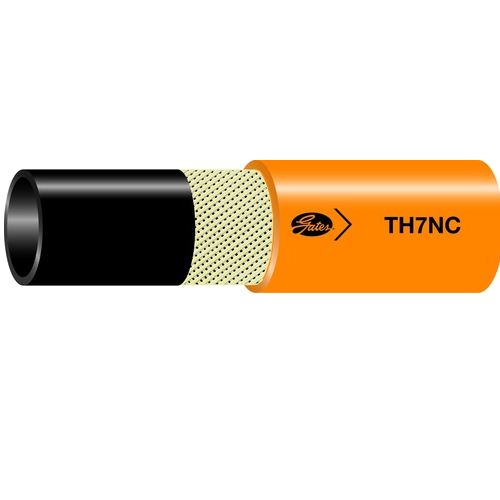

NON CONDUCTIVE THERMOPLASTIC

Read More

Tube: -2, -12, and -16: 100% seamless Nylon – Type Z that easily handles a broad range of hydraulic fluids, including phosphate esters and water glycol; -3 through -8 Polyester.

Reinforcement: Braided synthetic fiber (except -2: Spiraled synthetic fiber).

Cover: Orange urethane that resists hydraulic fluids, high temperatures, aging and weathering. Orange TH7NC is non-perforated for applications requiring electrical non-conductivity. Meets SAE 100R7 Electrical Conductivity Test. Maximum leakage shall not exceed 50 micro amperes when subjected to 75 kV/Ft. for five minutes. Orange is industry accepted color for non-conductive hose.

Temperature Range: -65°F to +200°F (-54°C to +93°C) continuous service for petroleum and synthetic oils. Maximum of +158°F (+70°C) for water, water/oil emulsions and water glycol.
